Overview

Basic Info.

Model NO.	TG-24110001
Shape	Flat
Appearance	Flat Tempered
Standard	GB15763.2-2005
Steel Degree	Super-Tempered Glass
Thickness of Flat Tempered Glass	5MM
Thickness of Curve Tempered Glass	5MM
Fragment State	Ⅲ
Technics	Physically Tempered
Flatness	High Class
Usage	Building, Furniture, Home Appliance, Electronics & Instruments, Auto Manufacturing, Daily Products
Application	Gas Stove, Cooktop, Home Appliance
Production Process	Cutting, Grinding, Drilling, Printing, Toughen
Package	Standard Export Cartan with Interlayer Paper
Function	Chemical and Heat Resistance, Decorative Tempered
Transport Package	Wood Box and Customized
Trademark	GlassGlo
Origin	China
HS Code	7007190090

Product Description

7 Toughening Furnace: Our Toughening Furnace provides unmatched strength and durability, transforming ordinary glass into a resilient masterpiece ready to withstand the test of time.

Product Description

1. Dimension

Item (mm)	Tolerance (mm)
Thickness	± 0.3
Length / Width	± 0.5
Shape	± 1.0

2. Corner

2.1 Dubbed and Oblique Corners
Dubbed: Meticulously crafted with precision, these beveled or chamfered corners offer a smooth surface for enhanced safety and ease during handling and assembly. Approximately 0.5 to 2.0 mm of glass is carefully removed at an angle of about 45°C, ensuring elegance and functionality.
Oblique: These corners are expertly cut at specified angles (e.g., 1x45°) tailored to our clients' requirements, delivering bespoke solutions that perfectly align with their vision. 2.2 Radius Corners
The smallest possible standard radius is 2mm, crafted with precision and maintained within a tolerance of ±1.0mm

3.0 Hole tolerance

Hole Diameter	Hole Diameter tolerance	Hole Position tolerance
5~50mm	±0.4mm	±0.5mm
>50mm	±0.5mm	±0.5mm
Shape cut-out	±0.5mm	±0.5mm

For detailed specifications, please connect with Huayu Glass. Our team is eager to furnish comprehensive information tailored to your specific requirements, ensuring clarity and satisfaction.

Detailed Photos

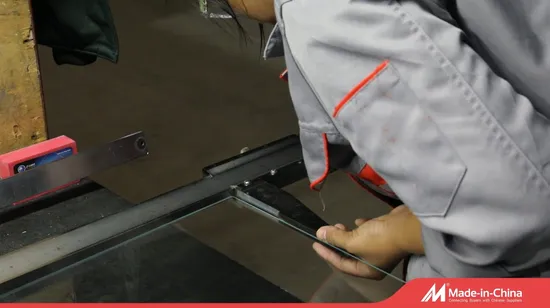

1 Cutting Machine

2 CNC Grinder

3 Bilateral Grinder

4 Online Drilling

5 Water Jet: Unleash the power of precision with our state-of-the-art Water Jet technology, designed to deliver impeccable cuts and smooth finishes for all your glass needs.

6 Printing Machine: printing size from 200mm to 2200mm
